9.5   Chapter Projects

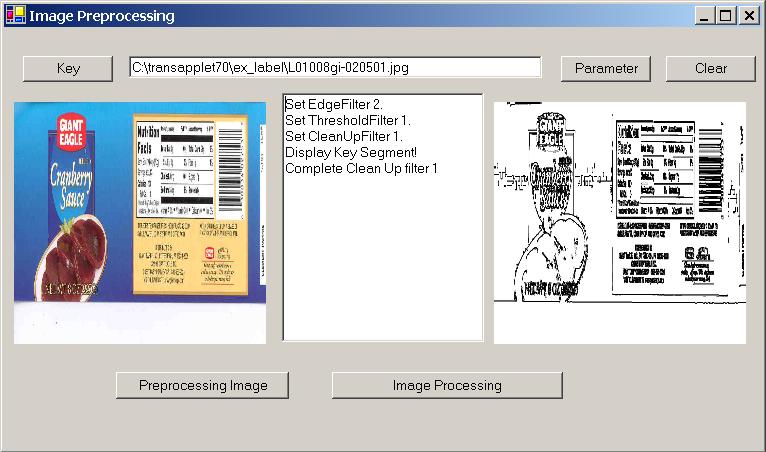

Figure 9.4   Chapter Project.

To see how image processing works, click the “Parameter” button in Figure 9.4 to get Figure 9.3. In Figure 9.3, set the:

      Edge Filter = 2 or “Sobel 2”.

      Threshold Filter =1 or  “Dark Background 128”.

      Clean-Up Filter = 2

You should see the following message in the text window:

      Set EdgeFilter 2.

      Set ThresholdFilter 1.

      Set CleanUpFilter 1.

      Display Key Segment!

Click the “Key” button and select image, “C:\transapplet70\ex_label\L01008gi-020501.jpg”. Click the “Image Processing” button and Figure 9.4 will show the results of image processing.
