19.   Input Options

The chapter project is located at:

        c:\transapplet70\imagefinder\.

The executable file is located at:

        c:\transapplet70\imagefinder\bin\Release\.

We also call this folder �.\�. That is, �.\� is �c:\transapplet70\imagefinder\bin\Release\�. When you start the software, the first thing you will see is Figure 19.1. ImageFinder requires a key image and a search source. Now, we will introduce a few input options, including:

  •    Microsoft Access,
  •    Avi video file, and
  •    Live video.

This chapter will introduce the input design for Microsoft Access, avi video file, and live video; and the next three chapters will introduce the implementation.

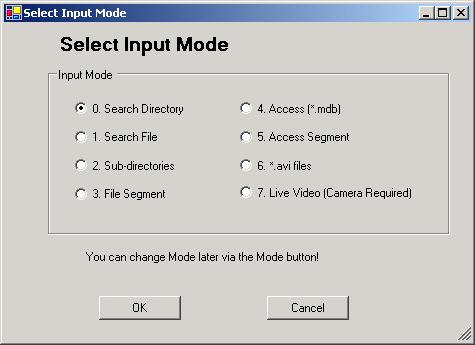

Figure 19.1  Input options.

The default search source is directory input, i.e. the ImageFinder will search through the images in a directory. The ImageFinder also will support a number of other options. See Figure 19.1.
