14.   BioFilters

The BioFilter matches two whole images. The BioFilter is better than Unsupervised Matching, but it requires a process called training. Training teaches the BioFilter who should match with whom. The BioFilter learns how to match the image features.

  •    The advantage of the BioFilter is that it does not require a lot of training data.
  •    The disadvantage of the BioFilter is that it has a lower identification rate than the Neural Filter.

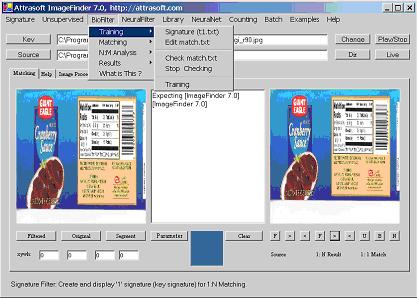

Figure 14.1 Training Menu.

The chapter project is located at:


The executable file is located at:


We also call this folder “.\”. That is, “.\” is “c:\transapplet70\imagefinder\bin\Release\”. The data is located at: “.\ex_label” or “c:\transapplet70\imagefinder\bin\Release\ ex_label”.
