22.5 Video to Image Design
You will need a Logitech camera for this section. After starting the camera live, the ImageFinder will convert the live video file to a set of images. After that, live video recognition becomes image recognition.

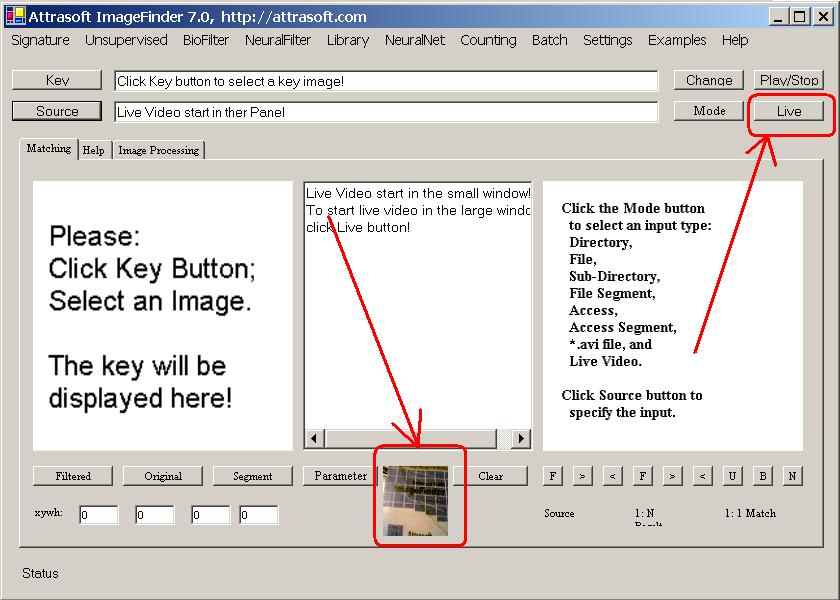

Figure 22.1 Converting Live Video File to Images, before clicking the “Live” button.

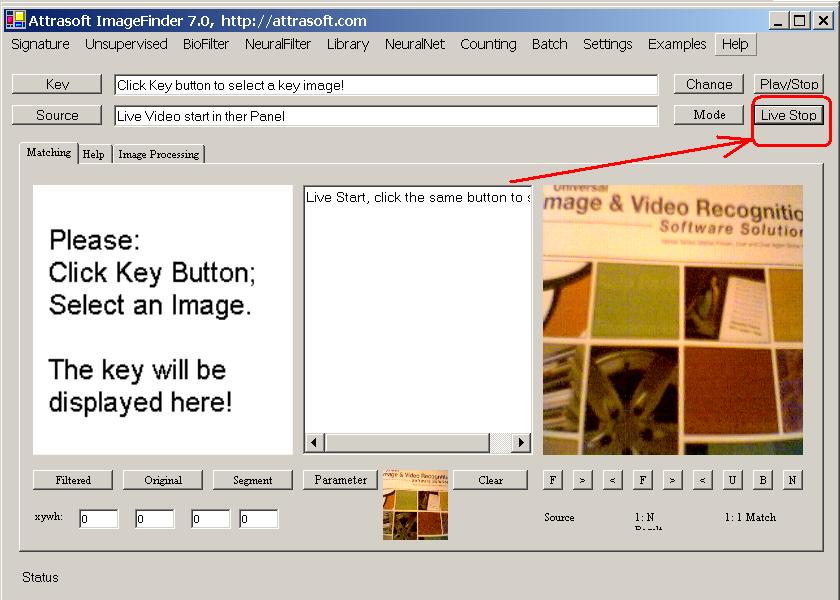

Figure 22.2 Converting Live Video File to Images, after clicking the “Live” button.
Example. Converting Live Video:
-
Start the software;
-
Select the option, “Live Video” (Figure 22.1);
-
Click the “Source” button to get Figure 22.1, where live video is shown on a small panel on Figure 22.1;
-
Click the “Live” button on Figure 22.1 to get Figure 22.2.
-
Click the “Change” button in Figure 22.2 to get Figure 22.3;
-
Click the “Live to Images” button to convert the Live Video to images;
-
Click “OK” to exit Figure 22.3.
-
Click the “Live Stop” button in Figure 22.2 to stop live video input.
You can find the image from live video in the folder specified by Line 2 in Figure 22.3. The default folder is:
C:\transapplet70\imagefinder\bin\debug\temp\.

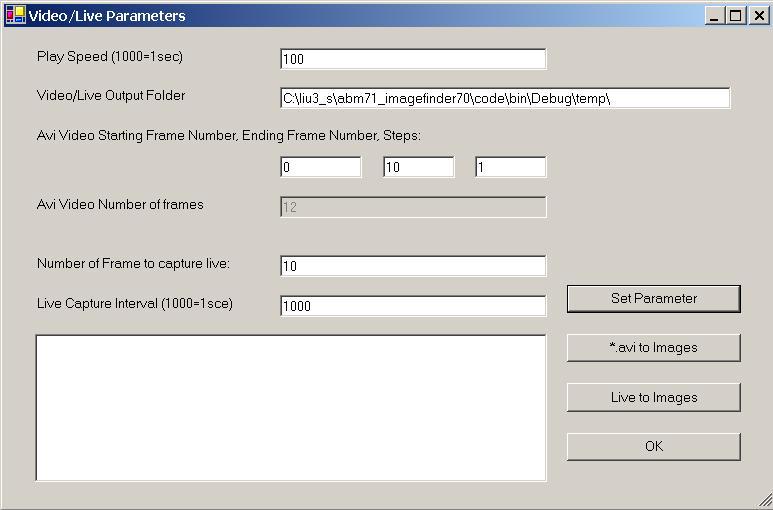

Figure 22.3 Converting Live Video to Images.
