27.2 ImageHunt Design
This chapter will show you how to program the ImageHunt. The basic idea is this:
-
User selects an image;
-
User uploads the image;
-
ImageHunt creates a batch file based on the newly uploaded image;
-
ImageHunt runs the batch file;
-
ImageHunt sends the resulting html page back to users.
The main job is to tweak the parameters via the ImageFinder. After that, simply add a web interface to the ImageFinder for Dos to complete the ImageHunt. The ImageHunt works like this:

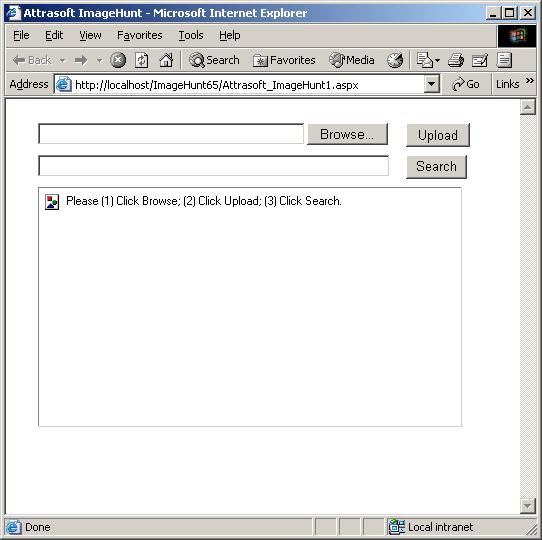

(1) Start the ImageHunt (Figure 27.1).
Figure 27.1 The ImageHunt.

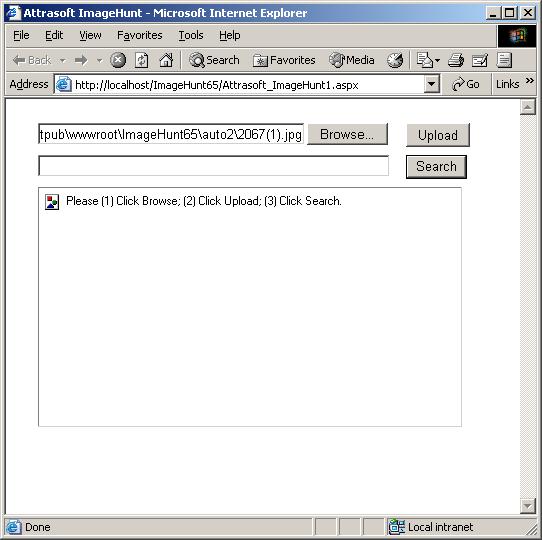

(2) Click the “Browse” button to select an image (Figure 27.2).
Figure 27.2 Select an image.

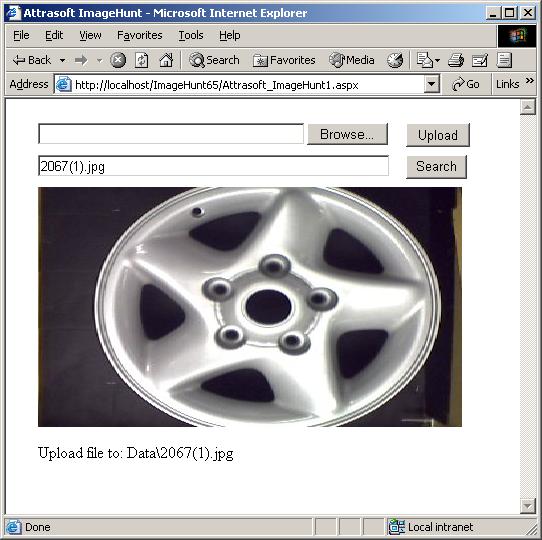

(3) Click the “Upload” button to upload the image (Figure 27.3).
Figure 27.3 Upload image.

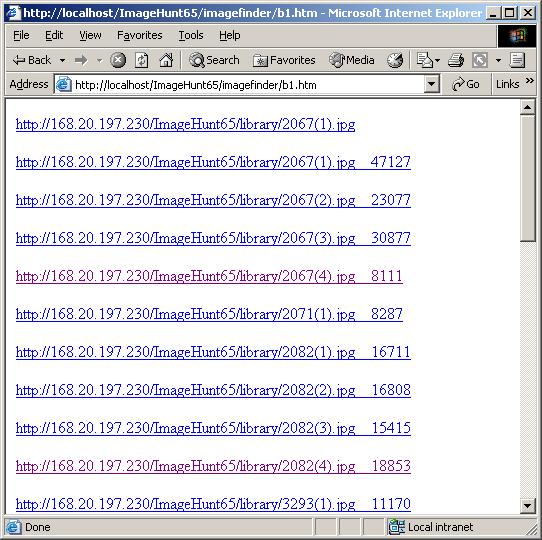

(4) Click the “Search” button to search (Figure 27.4).
Figure 27.4 Display the results.
