5.3   Link to Class Library

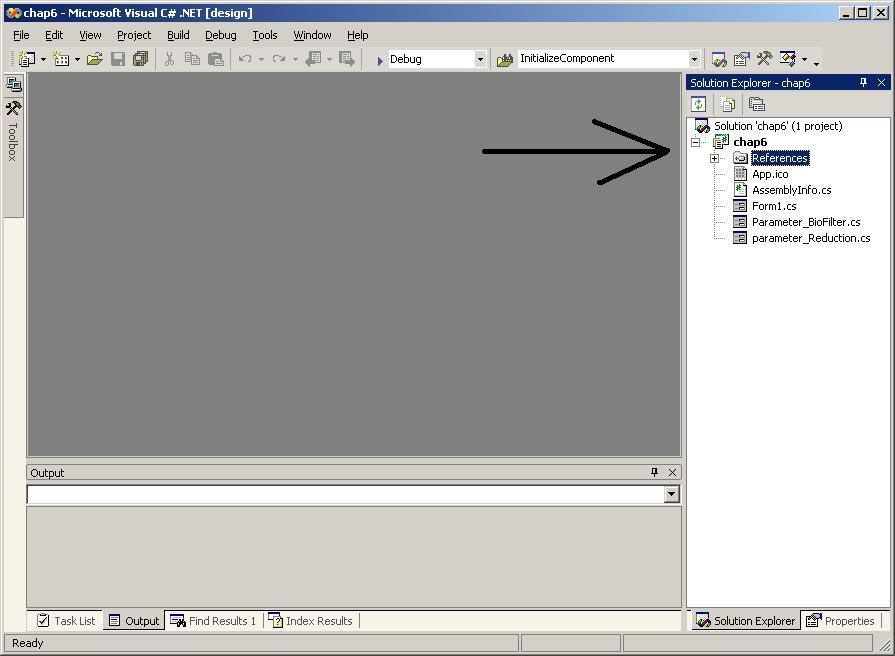

Figure 5.5   References In Solution Explorer.

In this section, XYZ denotes any class located in c:\transapplet70\. To use the class library, �Attrasoft.TransApplet70.XYZ�:

    (1) Add a �using� statement:

      using Attrasoft.TransApplet70.XYZ;

    (2) Right click References and select Add reference in the Solution Explorer (Figure 5.5);

    (3) Use the Browse button to find �XYZ.dll�; highlight the library under �Selected Components� and click the �OK� button.

    Now the class library, �Attrasoft.TransApple70.XYZ�, is ready to be used. To make sure the link is successful, you should see XYZ under References in the Solution Explorer.

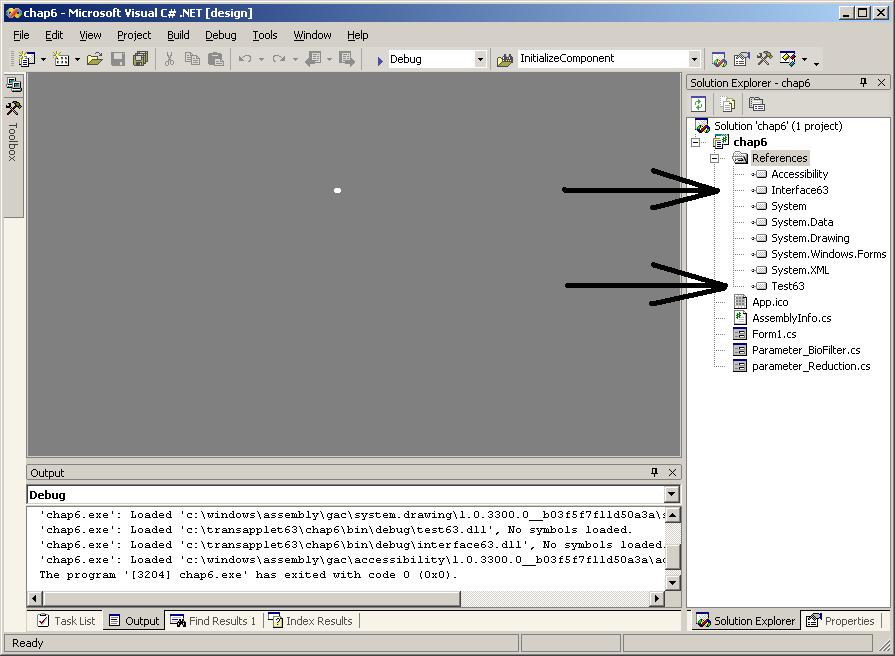

Figure 5.6   Solution Explorer after linking a class library.
