6.4   Link to Class Library

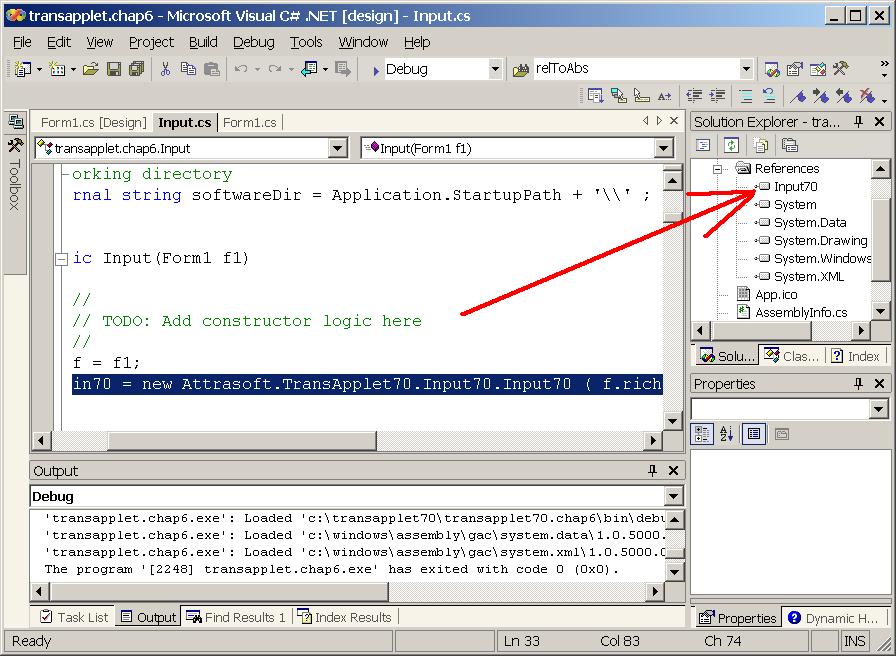

Figure 6.2  Link to Class library Input70.

To include the class library to the project,

  •    Right click References and select Add Reference in the Solution Explorer;
  •    Browse to find �Input70.dll� in �c:\transapplet70�;
  •    Highlight it and click the �OK� button (Figure 6.2).

To use the class library, add:

    using Attrasoft.TransApplet70.Input70;

To declare an object, please use the full path for class:

    public Attrasoft.TransApplet70.Input70.Input70 in70;

        in70 = new Attrasoft.TransApplet70.Input70.Input70 ( f.richTextBox1 );



Now, the Input70 object, in70, is ready to use.
