14.5   Parameters

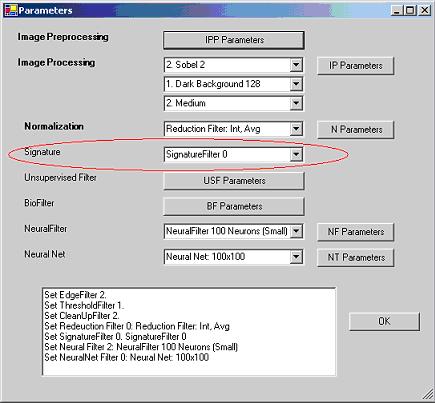

Figure 14.2  Parameter Window.

The ImageFinder has many parameters. Changing these parameters will change the output of the computations. The parameters are set by clicking the “Parameter” button in the main form, which will open the Parameter Window in Figure 14.2. You will adjust the ImageFinder parameters here.

The default setting uses the Signature Filter 0, which is the least accurate Signature Filter. There are 20 Signature filters in the current version of the ImageFinder. In general, when you have less data, use less accurate Signature filters; when you have more data, use more accurate Signature filters.

There are really no hard guidelines; the following is only a rough reference for the BioFilter:

        Signature Filter    Training Pairs

        0                                     10

        1                                      30

        2                                      30

        3                                      70

        4                                      70

        5                                     150

        6                                     150

        7                                      310

        8                                      310

        9                                      630

        10                                    630

        > 11                                1000

We have 152 pairs, so we will choose Signature Filter 6. In Figure 14.2, select Signature Filter 6 from line 6.
