15.4   Training Design

We introduced the Label Recognition problem with both the Unsupervised Filter and the BioFilter. We will choose “Signature Filter 9” in this chapter. In Figure 15.2, select Signature Filter 9 from line 6.

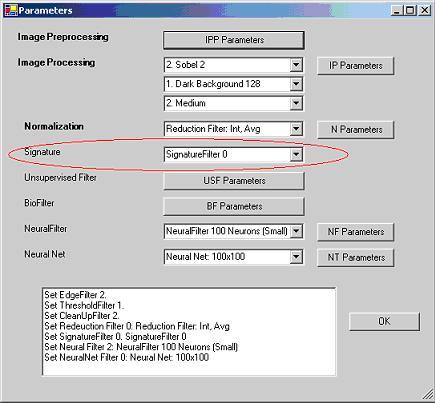

Figure 15.2  Parameter Window.

We now revisit the Label Recognition example.  We must prepare the match.txt file for training. This file is already prepared for you and we will simply open it and save it to match.txt. The steps are:

Match.txt

  •    Open the file, “.\data\match_ex_label.txt”. This file lists 152 matching pairs. Save it to match.txt (overwrite the existing file). Now the training file is prepared.

T1.txt:

  •    Click the “Source” button, go to “.\ex_label” directory and select any file in the folder. This will specify the input directory.
  •    Click the Source “>” button a few times to see the images;
  •    Click menu item “Signature/N Signature (a1.txt)” to get signature file, a1.txt file;
  •    Click menu item “Signature/Copy a1.txt to t1.txt” to get the training file, t1.txt.

Note: Here t1.txt is for training and a1.txt is for 1:N Matching and N:N Matching.

Training

  •    Click “Neural Filter\Training\Training” to train the NeuralFilter.

You should get this message at the end of the text window:

      Number of Matches = 152

      Neural Filter Training Completed!

The match.txt listed 152 pairs. The first line, Total Number of Matches = 152, indicates the training used 152 pairs. Now, the Neural Filter is trained for the Label Recognition problem. We will continue this example in the next section, N:N Matching.
