19.3 Segment File Input
The first three options are for whole images.
If you want compute the signature for a segment of an image, you have to select File Segment Input.
The Input Files must list one image per line. Each line specifies an absolute path, Image_ID, x, y, w, and h. A sample segment file looks like this:
.\2067(1).jpg 1 20 20 280 200
.\2067(2).jpg 2 20 20 280 200
.\2067(3).jpg 3 20 20 280 200
.\2067(4).jpg 4 20 20 280 200
.\2071(1).jpg 5 20 20 280 200
.\2071(2).jpg 6 20 20 280 200
.\2071(3).jpg 7 20 20 280 200
Here (x, y, w, h) are in the unit of pixels. You can specify File Segment source either in Figure 19.1, or in Figure 19.2:
-
In Figure 19.1, select the “File Segment”.
-
In Figure 19.2, keep clicking the “Mode” button and the setting will switch from one to the next.
Example. File Segment Input:
-
Start the software;
-
Select Option, “File Segment”;
-
Click the “Source” button, and select file, “.\input_file\input_filesegment1.txt”;
-
Click the “F” button in Figure 19.3 to see the first image, and click the “>” button to see the next image.
-

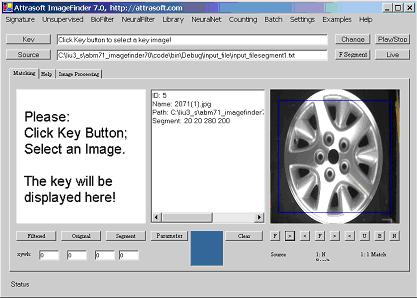

The segment is marked by a box in Figure 19.4.
Figure 19.4 File Segment.
