8.7   Skip the Empty Border by Content Percent

The last function for the Preprocessing filter is to skip border by content percent, not pixel percent.

The �Skip Empty Border� field in Figure 8.2 specifies the type:

          0   No skip;

          1   Skip the white empty border space;

          2   Skip the black empty border space;

          3   Skip x percent of the contents on the white background space;

          4   Skip x percent of the contents on the black background space;

          5   Skip empty border space on the user defined Threshold Filter;

          6   Skip x percent of the contents on the user defined Threshold/Edge Filters.

We will discuss Threshold/Edge Filters in the next chapter, Image Processing.

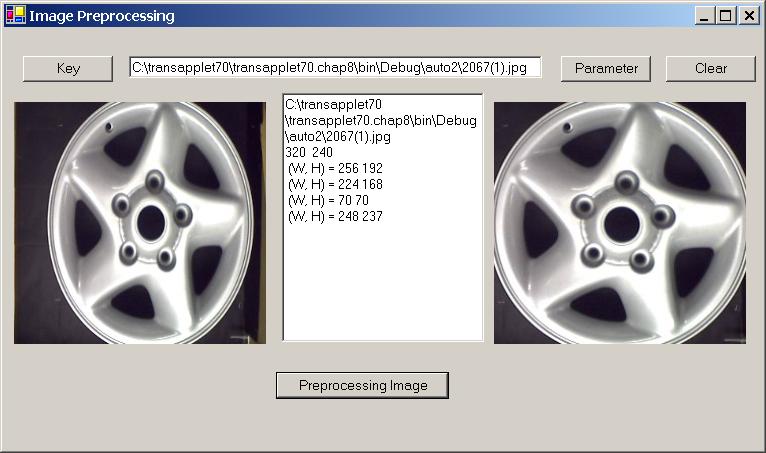

Example 1. Set �Skip Empty Border� = 2, means skipping the black empty space on the edge. The result is shown in Figure 8.6; you will see that the second image is the first image without a black border.

Figure 8.6  Skipping the black empty space.

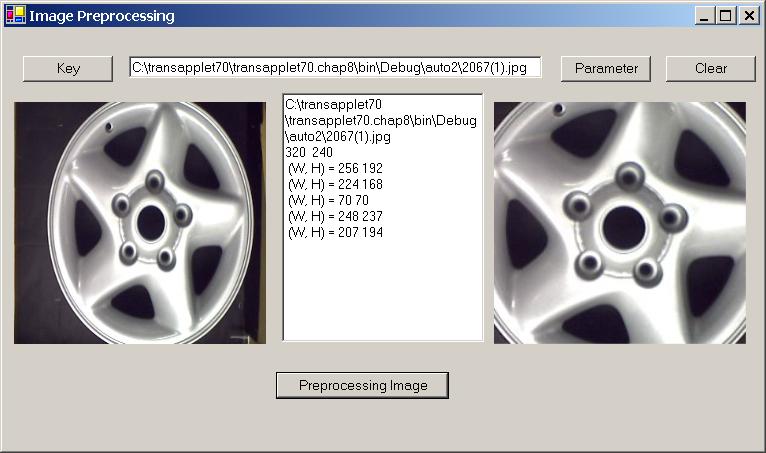

Example 2. Set �Skip Empty Border� = 4, means skipping the black empty space on the edge. Set �Skip percent� = 10. The result is shown in Figure 8.7; you will see that the second image is the first image with 10% of the contents cut on each side.

Figure 8.7  Skipping 10% of the contents on the black background.
