17.8   Another Test: Mr. Potato

Now, we want a match of the Mr. Potato trademark in Figure 17.3:

  •    Click the “Key” button, in the “.\input_auto_track” directory, select image “IMAGE002.jpg”;
  •    Enter (400, 30, 150, 180) to the segment textboxes in Figure 17.2.
  •    Click the Segment button.

To train the NeuralNet Filter:

  •    Click “NeuralNet/training” in Figure 17.3 to complete the training.

To make a 1:N Matching:

  •    Click the “Source” button to select directory, “.\input_auto_track”; then select any file in this folder;
  •    Click “NeuralNet/Matching/1:N (Key vs Source)” to make a 1:N Matching (See Figure 17.3).

To see where the matching segment is, there are three buttons in Figure 17.4:

F, > (Next), and < (Previous), that can be used to show where the matched segment is:

        Click the “F” button to see the first matched segment;

        Click the “>” to see the next matched segment;

        Click the “<” button to see the previous matched button.

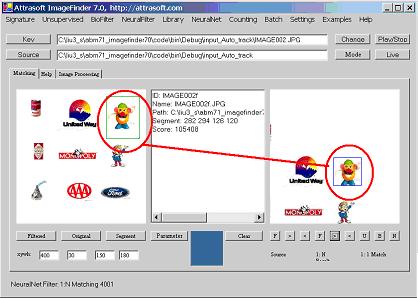

Figure 17.6  Mr. Potato.
